HP

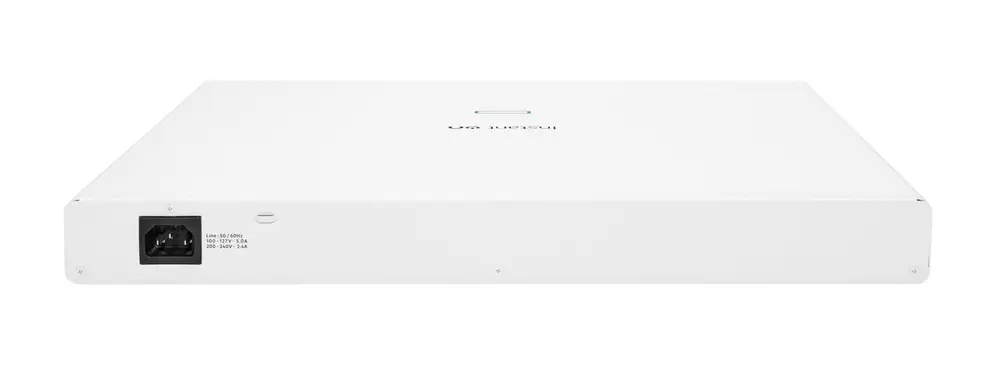

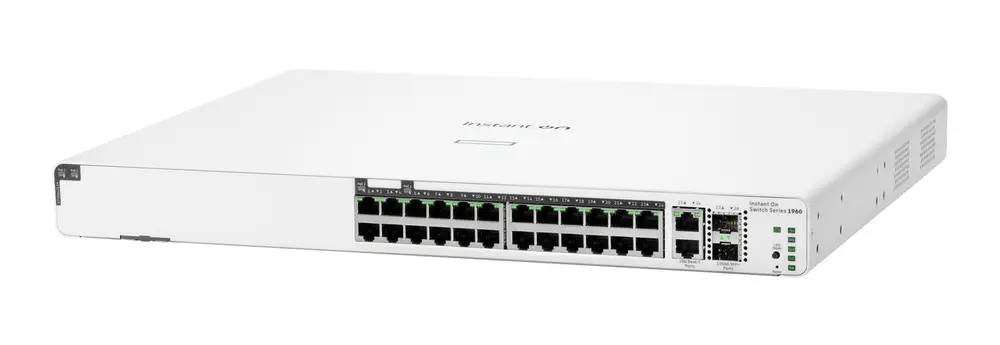

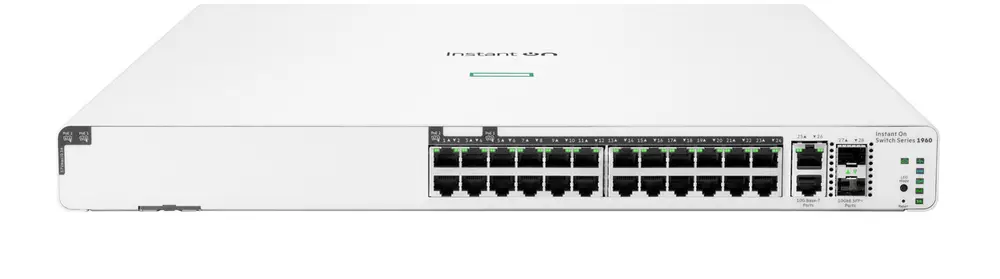

HPE Aruba Networking Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
SKU JL807A
Barcode 190017521589
£641.70 inc VAT £534.75 ex VAT + £25 delivery per order
In stock
About our prices
Key features
- Managed L2+ Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Description
HPE Aruba Networking Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Dimensions Weight
| Width | 350.5 mm |
|---|
| Height | 44 mm |
|---|
| Depth | 442.5 mm |
|---|
| Weight | 4700 g |
|---|
Camera
| Built-in processor | Yes |
|---|
| Processor frequency | 800 |
|---|
Computer system
| Internal memory | 1024 |
|---|
| Processor model | ARM Cortex-A9 |
|---|
Data transmission
| Latency (1 Gbps) | 2.2 |
|---|
| Latency (10 Gbps) | 1.1 |
|---|
| Latency (10-100 Mbps) | 4.4 |
|---|
| Switching capacity | 128 |
|---|
Design
| Form factor | 1U |
|---|
| Operating relative humidity (H-H) | 15 - 95 |
|---|
| Operating temperature (T-T) | 0 - 40 |
|---|
| Rack mounting | Yes |
|---|
| Storage relative humidity (H-H) | 15 - 90 |
|---|
| Storage temperature (T-T) | -40 - 70 |
|---|
Features
| AC input voltage | 200 - 240 |
|---|
| Flash memory | 512 |
|---|
| I/O ports | 24 RJ-45 autosensing 10/100/1000 BASE-T ports with 4 ports of IEEE 802.af/at/bt CL6 PoE and 20 ports of IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10 GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 B |
|---|
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
|---|
| Power over Ethernet (PoE) | Yes |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| SFP+ module slots quantity | 2 |
|---|
| Switch layer | L2 |
|---|
| Switch type | Managed |
|---|
| VLAN support | Yes |
|---|
Network
| 10G support | Yes |
|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z |
|---|
Performance
| Physical stacking (units) | 4 |
|---|
Ports & interfaces
| 10G Ethernet (copper) ports quantity | 2 |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
Security
| DHCP features | DHCP snooping |
|---|
| SSH/SSL support | Yes |
|---|
