Ruijie Networks RG-CS83-12GT4XS-P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
SKU RG-CS83-12GT4XS-P
Barcode 6971693276192
£561.10 inc VAT £467.58 ex VAT + £25 delivery per order
In stock
Key features
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12
- 10G support
- MAC address table: 16000 entries Switching capacity: 104 Gbit/s
- Access Control List (ACL)
- 1U Stackable
- AC Power supply included Power over Ethernet (PoE)
Description
Layer 3 GE Managed Access Switch
RG-CS83-12GT4XS-P

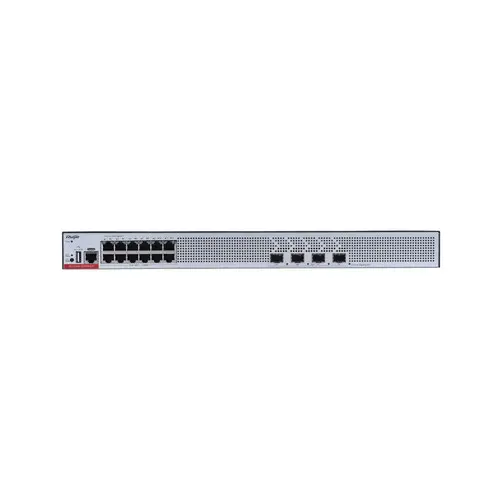

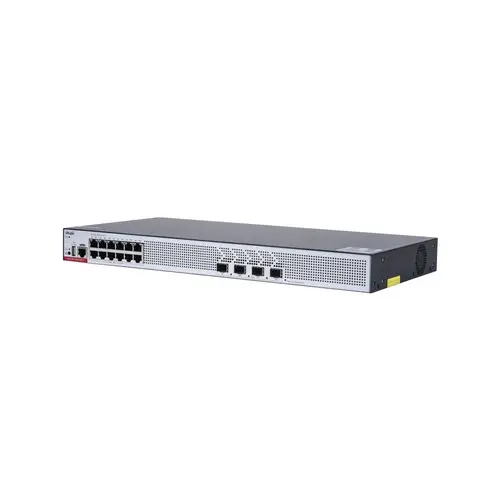

12 x 10/100/1000BASE-T ports and four 1GE/10GE SFP+ ports for flexible networking
PoE+ supported, providing power to powered devices on security hybrid systems and wireless coverage systems
Dual-boot at the hardware level, Offering
Carrier-class Reliability
Two flash chips used to store boot software to achieve hardware-level boot redundancy,
avoiding switch boot failures due to flash chip faults
10 kV Surge Protection
Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.
RG-CS83-12GT4XS-P
12 x 10/100/1000BASE-T ports and four 1GE/10GE SFP+ ports for flexible networking
PoE+ supported, providing power to powered devices on security hybrid systems and wireless coverage systems
Dual-boot at the hardware level, Offering
Carrier-class Reliability
Two flash chips used to store boot software to achieve hardware-level boot redundancy,
avoiding switch boot failures due to flash chip faults
10 kV Surge Protection
Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.
Dimensions Weight
| Width | 442 mm |
|---|---|
| Height | 43 mm |
| Depth | 220 mm |
| Weight | 3300 g |
Battery
| Power protection features | Surge protection |
|---|---|
| Product colour | Grey |
Camera
| Built-in processor | Yes |
|---|---|
| Processor frequency | 1000 |
Certificates
| Compliance certificates | RoHS |
|---|
Computer system
| Internal memory | 1000 |
|---|
Cooling
| Noise level | 35 |
|---|---|
| Number of fans | 1 |
Data transmission
| Switching capacity | 104 |
|---|
Design
| Form factor | 1U |
|---|---|
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
Features
| AC input voltage | 90 - 264 |
|---|---|
| Flash memory | 512 |
| IPv4 & IPv6 features | Ipv6sourceaddressvalidationimprovement Savi |
| IPv4 multicast entries | 1000 |
| IPv6 multicast entries | 750 |
| Manual | Yes |
| Package depth | 338 |
| Package height | 154 |
| Package weight | 4180 |
| Package width | 540 |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | HTTPS, SSH, Ssh 2 |
| Switch layer | L3 |
| Switch type | Managed |
| Virtual LAN features | Interface Basedvlan, IP subnet–based VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support | Yes |
Network
| 10G support | Yes |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ah, IEEE 802.3az |
Performance
| Routing protocols | OSPFv2, OSPFv3, RIP, RIPng |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 12 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
Security
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, Dhcpv6server, DHCPv6 snooping |
|---|---|
| IP-MAC-Port binding | Yes |
